UL2096 Multi-Core Shielded Wire 多芯隔離線

■說明
●導體使用絞線,30-16AWG裸軟銅或鍍錫軟銅線
●PVC絕緣
●2芯或8芯
●裸軟銅或鍍錫軟銅線纏繞隔離
●PVC被覆
●額定溫度：80℃；額定電壓：300volts
●可通過UL VW-1SC 垂直耐燃測試
●參考標準：UL 758， UL 1581

■應用：
●一般電子，電器設備內部配線

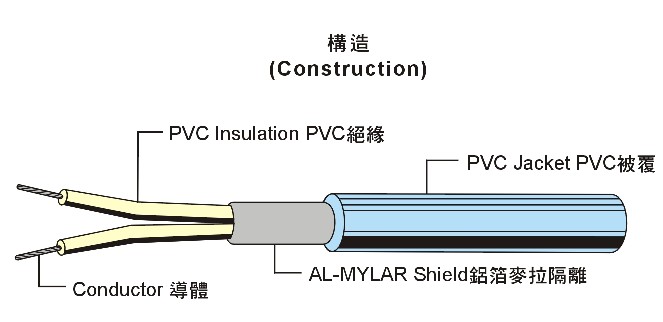

■PRODUCT DESCRIPTION
●Tinned or bare,stranded or solid copper conductor,30-16AWG.
●Color-coded PVC insulation.
●Two or eight cores.
●Tinned or bare copper wire spiral shield.
●PVC jacket.
●Rated temperature：80℃. Rated voltage：300 volts.
●Passes UL VW - 1SC vertical flame test.
●Reference standard：UL subject 758，UL 1581.

■APPLICATIONS：
●For general purpose internal wiring of electronicand electrical equipment
