UL2562 Parallel Shield Wire 并排隔離線

■說明
● 導體使用絞線,30-16AWG裸軟銅或鍍錫軟銅線
●PVC絕緣，芯線類似UL1007
●裸軟銅或鍍錫軟銅線纏繞隔離
●PVC被覆
●額定溫度：80 ℃；額定電壓：300 volts
●可通過UL VW-1SC垂直耐燃測試
●參考標準：UL 758，UL1581

■應用
●用于視聽設備，電子設備內部配線

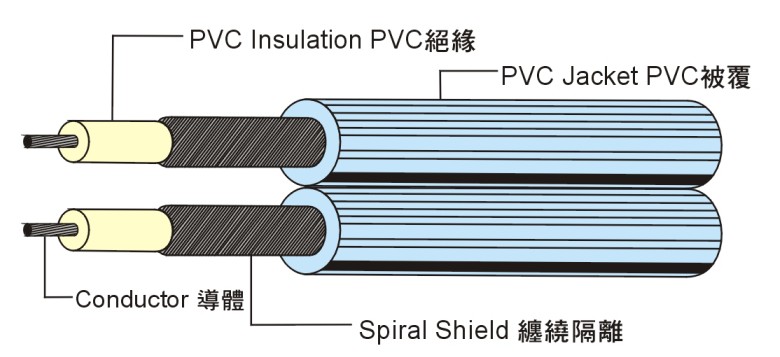

■PRODUCT DESCRIPTION
●Tinned or bare,stranded, or solid copper conductor, 30-16AWG
●Color-coded PVC insulation,similar to UL1007
●Tinned or bare copper wire spiral shield.
●PVC jacket
●Rated temperature：80℃;Rated voltage：300V
●Passes UL VW-1 and JQA -F-Mark flame test
●Reference standard：UL758,UL1581

■APPLICATION
●For use in internal wiring of audio or video equipment
